rtcp.h File Reference

RFC 3550 §6.4-compliant RTCP Sender Report (SR) implementation. More...

#include <smolrtsp/priv/compiler_attrs.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

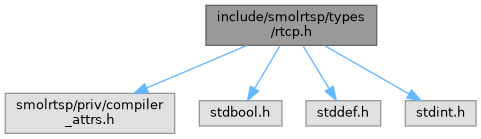

Include dependency graph for rtcp.h:

Go to the source code of this file.

Data Structures
struct	SmolRTSP_RtcpSr
	An RTCP Sender Report (SR) header. More...
struct	SmolRTSP_RtcpRr
	An RTCP Receiver Report (RR) header (RFC 3550 §6.4.2). More...
struct	SmolRTSP_RtcpSdesCname
	An RTCP SDES packet with a single chunk containing a single CNAME item (RFC 3550 §6.5). More...
struct	SmolRTSP_RtcpBye
	An RTCP BYE packet for a single SSRC, optionally carrying a reason text (RFC 3550 §6.6). More...

Macros
#define	SMOLRTSP_RTCP_PT_SR   200
	RTCP packet type for Sender Report (RFC 3550 §6.4.1).
#define	SMOLRTSP_RTCP_PT_RR   201
	RTCP packet type for Receiver Report (RFC 3550 §6.4.2).
#define	SMOLRTSP_RTCP_PT_SDES   202
	RTCP packet type for Source Description (RFC 3550 §6.5).
#define	SMOLRTSP_RTCP_PT_BYE   203
	RTCP packet type for Goodbye (RFC 3550 §6.6).
#define	SMOLRTSP_RTCP_SDES_CNAME   1
	SDES item type for canonical end-point identifier (CNAME) (RFC 3550 §6.5.1).
#define	SMOLRTSP_RTCP_SR_SIZE_BASE   28u
	The fixed wire size of an RTCP Sender Report with no reception report blocks (RC = 0).
#define	SMOLRTSP_RTCP_RR_SIZE_BASE   8u
	The fixed wire size of an RTCP Receiver Report with no reception report blocks (RC = 0): a 4-byte common header plus the 4-byte SSRC of the packet sender = 8 bytes.

Functions
size_t	SmolRTSP_RtcpSr_size (SmolRTSP_RtcpSr self) SMOLRTSP_PRIV_MUST_USE
	Computes the size of the binary self.
uint8_t *	SmolRTSP_RtcpSr_serialize (SmolRTSP_RtcpSr self, uint8_t buffer[restrict]) SMOLRTSP_PRIV_MUST_USE
	Writes self to buffer.
size_t	SmolRTSP_RtcpRr_size (SmolRTSP_RtcpRr self) SMOLRTSP_PRIV_MUST_USE
	Computes the size of the binary self.
uint8_t *	SmolRTSP_RtcpRr_serialize (SmolRTSP_RtcpRr self, uint8_t buffer[restrict]) SMOLRTSP_PRIV_MUST_USE
	Writes self to buffer.
size_t	SmolRTSP_RtcpSdesCname_size (SmolRTSP_RtcpSdesCname self) SMOLRTSP_PRIV_MUST_USE
	Computes the size of the binary self.
uint8_t *	SmolRTSP_RtcpSdesCname_serialize (SmolRTSP_RtcpSdesCname self, uint8_t buffer[restrict]) SMOLRTSP_PRIV_MUST_USE
	Writes self to buffer.
size_t	SmolRTSP_RtcpBye_size (SmolRTSP_RtcpBye self) SMOLRTSP_PRIV_MUST_USE
	Computes the size of the binary self.
uint8_t *	SmolRTSP_RtcpBye_serialize (SmolRTSP_RtcpBye self, uint8_t buffer[restrict]) SMOLRTSP_PRIV_MUST_USE
	Writes self to buffer.

Detailed Description

RFC 3550 §6.4-compliant RTCP Sender Report (SR) implementation.

Macro Definition Documentation

SMOLRTSP_RTCP_SR_SIZE_BASE

#define SMOLRTSP_RTCP_SR_SIZE_BASE   28u

The fixed wire size of an RTCP Sender Report with no reception report blocks (RC = 0).

4 (common header) + 4 (sender SSRC) + 8 (NTP timestamp) + 4 (RTP timestamp)

• 4 (packet count) + 4 (octet count) = 28 bytes.

Function Documentation

SmolRTSP_RtcpBye_serialize()

uint8_t * SmolRTSP_RtcpBye_serialize	(	SmolRTSP_RtcpBye	self,
		uint8_t	buffer[restrict]
	)

Writes self to buffer.

Precondition

buffer != NULL

self.reason == NULL || strlen(self.reason) <= 255

SmolRTSP_RtcpBye_size()

size_t SmolRTSP_RtcpBye_size

(

SmolRTSP_RtcpBye

self

)

Computes the size of the binary self.

Without a reason: 8 bytes (4 header + 4 SSRC). With a reason: the above plus 1 byte length + N bytes text, zero-padded to a 32-bit boundary.

Precondition

self.reason == NULL || strlen(self.reason) <= 255

SmolRTSP_RtcpRr_serialize()

uint8_t * SmolRTSP_RtcpRr_serialize	(	SmolRTSP_RtcpRr	self,
		uint8_t	buffer[restrict]
	)

Writes self to buffer.

Parameters

[in]	self	The RR packet to write.
[out]	buffer	Must be at least SmolRTSP_RtcpRr_size(self) bytes.

Returns

The pointer to the passed buffer.

Precondition

buffer != NULL

self.rc == 0

SmolRTSP_RtcpRr_size()

size_t SmolRTSP_RtcpRr_size

(

SmolRTSP_RtcpRr

self

)

Computes the size of the binary self.

Currently always returns SMOLRTSP_RTCP_RR_SIZE_BASE.

SmolRTSP_RtcpSdesCname_serialize()

uint8_t * SmolRTSP_RtcpSdesCname_serialize	(	SmolRTSP_RtcpSdesCname	self,
		uint8_t	buffer[restrict]
	)

Writes self to buffer.

Precondition

buffer != NULL

self.cname != NULL

strlen(self.cname) <= 255

SmolRTSP_RtcpSdesCname_size()

size_t SmolRTSP_RtcpSdesCname_size

(

SmolRTSP_RtcpSdesCname

self

)

Computes the size of the binary self.

Layout: 4-byte common header + 4-byte SSRC + 2-byte CNAME item header

• N bytes of CNAME text + 1-byte item-list terminator, then zero-padded to a 32-bit boundary.

Precondition

self.cname != NULL

strlen(self.cname) <= 255

SmolRTSP_RtcpSr_serialize()

uint8_t * SmolRTSP_RtcpSr_serialize	(	SmolRTSP_RtcpSr	self,
		uint8_t	buffer[restrict]
	)

Writes self to buffer.

Parameters

[in]	self	The SR packet to write.
[out]	buffer	The pointer to write to. Must be at least of size SmolRTSP_RtcpSr_size(self).

Returns

The pointer to the passed buffer.

Precondition

buffer != NULL

self.rc == 0 (reception report blocks not yet supported)

SmolRTSP_RtcpSr_size()

size_t SmolRTSP_RtcpSr_size

(

SmolRTSP_RtcpSr

self

)

Computes the size of the binary self.

Currently always returns SMOLRTSP_RTCP_SR_SIZE_BASE; reserved for future support of reception report blocks.
