jpegxs_transport.h File Reference

An RTP/JPEG XS data transport. More...

#include <smolrtsp/droppable.h>
#include <smolrtsp/jpegxs.h>
#include <smolrtsp/rtp_transport.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <slice99.h>
#include <smolrtsp/priv/compiler_attrs.h>

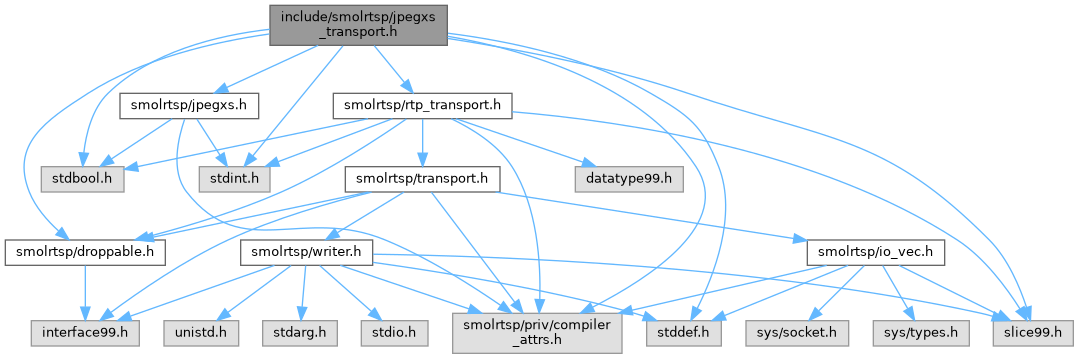

Include dependency graph for jpegxs_transport.h:

Go to the source code of this file.

Data Structures
struct	SmolRTSP_JpegXsTransportConfig
	The configuration structure for SmolRTSP_JpegXsTransport. More...

Macros
#define	SMOLRTSP_MAX_JPEGXS_PACKET_SIZE   1200
	The default value for SmolRTSP_JpegXsTransportConfig.max_packet_size.

Typedefs
typedef struct SmolRTSP_JpegXsTransport	SmolRTSP_JpegXsTransport
	An RTP/JPEG XS data transport.

Functions
SmolRTSP_JpegXsTransportConfig	SmolRTSP_JpegXsTransportConfig_default (void) SMOLRTSP_PRIV_MUST_USE
	Returns the default SmolRTSP_JpegXsTransportConfig: codestream packetization mode, T=1, and SMOLRTSP_MAX_JPEGXS_PACKET_SIZE.
SmolRTSP_JpegXsTransport *	SmolRTSP_JpegXsTransport_new (SmolRTSP_RtpTransport *t) SMOLRTSP_PRIV_MUST_USE
	Creates a new RTP/JPEG XS transport with the default configuration.
SmolRTSP_JpegXsTransport *	SmolRTSP_JpegXsTransport_new_with_config (SmolRTSP_RtpTransport *t, SmolRTSP_JpegXsTransportConfig config) SMOLRTSP_PRIV_MUST_USE
	Creates a new RTP/JPEG XS transport with a custom configuration.
int	SmolRTSP_JpegXsTransport_send_codestream (SmolRTSP_JpegXsTransport *self, SmolRTSP_RtpTimestamp ts, SmolRTSP_JpegXsInterlace interlace, bool is_frame_end, U8Slice99 codestream) SMOLRTSP_PRIV_MUST_USE
	Sends a JPEG XS packetization unit in codestream mode (K=0).
int	SmolRTSP_JpegXsTransport_send_header_segment (SmolRTSP_JpegXsTransport *self, SmolRTSP_RtpTimestamp ts, SmolRTSP_JpegXsInterlace interlace, U8Slice99 header_segment) SMOLRTSP_PRIV_MUST_USE
	Sends the header-segment packetization unit in slice mode (K=1).
int	SmolRTSP_JpegXsTransport_send_slice (SmolRTSP_JpegXsTransport *self, SmolRTSP_RtpTimestamp ts, SmolRTSP_JpegXsInterlace interlace, uint16_t slice_index, bool is_frame_end, U8Slice99 slice) SMOLRTSP_PRIV_MUST_USE
	Sends a single slice as its own packetization unit in slice mode (K=1).
	declImplExtern99 (SmolRTSP_Droppable, SmolRTSP_JpegXsTransport)
	Implements SmolRTSP_Droppable_IFACE for SmolRTSP_JpegXsTransport.
bool	SmolRTSP_JpegXsTransport_is_full (SmolRTSP_JpegXsTransport *self)

Detailed Description

An RTP/JPEG XS data transport.

See also

RTP Payload Format for ISO/IEC 21122 (JPEG XS): https://datatracker.ietf.org/doc/html/rfc9134

Macro Definition Documentation

SMOLRTSP_MAX_JPEGXS_PACKET_SIZE

#define SMOLRTSP_MAX_JPEGXS_PACKET_SIZE   1200

The default value for SmolRTSP_JpegXsTransportConfig.max_packet_size.

The limit includes the 4-byte JPEG XS payload header: the codestream chunk per RTP packet is at most max_packet_size - SMOLRTSP_JPEGXS_PAYLOAD_HEADER_SIZE bytes.

Function Documentation

declImplExtern99()

declImplExtern99	(	SmolRTSP_Droppable	,
		SmolRTSP_JpegXsTransport
	)

Implements SmolRTSP_Droppable_IFACE for SmolRTSP_JpegXsTransport.

See Interface99 for the macro usage.

SmolRTSP_JpegXsTransport_new()

SmolRTSP_JpegXsTransport * SmolRTSP_JpegXsTransport_new

(

SmolRTSP_RtpTransport *

t

)

Creates a new RTP/JPEG XS transport with the default configuration.

Parameters

[in]

t

The underlying RTP transport.

Precondition

t != NULL.

SmolRTSP_JpegXsTransport_new_with_config()

SmolRTSP_JpegXsTransport * SmolRTSP_JpegXsTransport_new_with_config	(	SmolRTSP_RtpTransport *	t,
		SmolRTSP_JpegXsTransportConfig	config
	)

Creates a new RTP/JPEG XS transport with a custom configuration.

Parameters

[in]	t	The underlying RTP transport.
[in]	config	The transmission configuration structure.

Precondition

t != NULL.

config.max_packet_size > SMOLRTSP_JPEGXS_PAYLOAD_HEADER_SIZE.

config.sequential is true when config.pack_mode is SMOLRTSP_JPEGXS_PACK_CODESTREAM (RFC 9134 §4.3).

SmolRTSP_JpegXsTransport_send_codestream()

int SmolRTSP_JpegXsTransport_send_codestream	(	SmolRTSP_JpegXsTransport *	self,
		SmolRTSP_RtpTimestamp	ts,
		SmolRTSP_JpegXsInterlace	interlace,
		bool	is_frame_end,
		U8Slice99	codestream
	)

Sends a JPEG XS packetization unit in codestream mode (K=0).

One call corresponds to one packetization unit: an entire progressive frame, or a single field of an interlaced frame. The library splits codestream across as many RTP packets as needed and builds the RFC 9134 §4.3 payload header per packet. The L bit is set on the final packet of the unit; the RTP marker bit is set only when is_frame_end is true and on that same final packet. The internal frame counter is post-incremented after a successful send with is_frame_end true.

Parameters

[in]	self	The transport.
[in]	ts	The RTP timestamp shared by every packet of the unit.
[in]	interlace	The interlaced-information field.
[in]	is_frame_end	true iff this packetization unit ends the current frame – always true for a progressive frame, true only on SMOLRTSP_JPEGXS_INTERLACE_FIELD_2 for an interlaced frame.
[in]	codestream	The codestream bytes for this unit.

Precondition

self != NULL.

The configured pack mode is SMOLRTSP_JPEGXS_PACK_CODESTREAM.

Returns

0 on success; -1 on I/O error (with errno set).

SmolRTSP_JpegXsTransport_send_header_segment()

int SmolRTSP_JpegXsTransport_send_header_segment	(	SmolRTSP_JpegXsTransport *	self,
		SmolRTSP_RtpTimestamp	ts,
		SmolRTSP_JpegXsInterlace	interlace,
		U8Slice99	header_segment
	)

Sends the header-segment packetization unit in slice mode (K=1).

The unit carries the VS box, CS box, and codestream-header segment; every packet emitted by this call has SEP set to SMOLRTSP_JPEGXS_SEP_HEADER_SEGMENT. The RTP marker bit is never set.

Parameters

[in]	self	The transport.
[in]	ts	The RTP timestamp shared by every packet of the unit.
[in]	interlace	The interlaced-information field.
[in]	header_segment	The header-segment bytes.

Precondition

self != NULL.

The configured pack mode is SMOLRTSP_JPEGXS_PACK_SLICE.

Returns

0 on success; -1 on I/O error (with errno set).

SmolRTSP_JpegXsTransport_send_slice()

int SmolRTSP_JpegXsTransport_send_slice	(	SmolRTSP_JpegXsTransport *	self,
		SmolRTSP_RtpTimestamp	ts,
		SmolRTSP_JpegXsInterlace	interlace,
		uint16_t	slice_index,
		bool	is_frame_end,
		U8Slice99	slice
	)

Sends a single slice as its own packetization unit in slice mode (K=1).

Parameters

[in]	self	The transport.
[in]	ts	The RTP timestamp shared by every packet of the slice.
[in]	interlace	The interlaced-information field.
[in]	slice_index	The slice index in [0, 0x7FE]. (0x7FF is reserved for the header segment.) Placed in the SEP field.
[in]	is_frame_end	true iff this slice ends the current frame – the RTP marker bit fires on the slice's final packet. For interlaced frames this should be true only on the last slice of SMOLRTSP_JPEGXS_INTERLACE_FIELD_2.
[in]	slice	The slice bytes.

Precondition

self != NULL.

The configured pack mode is SMOLRTSP_JPEGXS_PACK_SLICE.

slice_index < SMOLRTSP_JPEGXS_SEP_HEADER_SEGMENT.

Returns

0 on success; -1 on I/O error (with errno set).
