av1.h File Reference

AV1 RTP aggregation-header types, LEB128 helpers, and OBU constants. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <smolrtsp/priv/compiler_attrs.h>

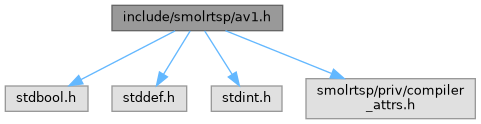

Include dependency graph for av1.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	SmolRTSP_Av1AggregationHeader
	The AV1 RTP aggregation header byte (AOMedia AV1 RTP §4.4). More...

Macros
#define	SMOLRTSP_AV1_AGGREGATION_HEADER_SIZE   1
	The size in bytes of the AV1 RTP aggregation header (AOMedia AV1 RTP §4.4).
#define	SMOLRTSP_AV1_LEB128_MAX_SIZE   10
	Maximum number of bytes that an unsigned 64-bit value can occupy when LEB128-encoded (used for OBU element lengths in AV1 RTP §4.5 and for obu_size inside AV1 OBU headers).
#define	SMOLRTSP_AV1_OBU_RESERVED_0   0
	AV1 OBU types (AV1 spec §6.2.1).
#define	SMOLRTSP_AV1_OBU_SEQUENCE_HEADER   1
#define	SMOLRTSP_AV1_OBU_TEMPORAL_DELIMITER   2
#define	SMOLRTSP_AV1_OBU_FRAME_HEADER   3
#define	SMOLRTSP_AV1_OBU_TILE_GROUP   4
#define	SMOLRTSP_AV1_OBU_METADATA   5
#define	SMOLRTSP_AV1_OBU_FRAME   6
#define	SMOLRTSP_AV1_OBU_REDUNDANT_FRAME_HEADER   7
#define	SMOLRTSP_AV1_OBU_TILE_LIST   8
#define	SMOLRTSP_AV1_OBU_PADDING   15

Functions
void	SmolRTSP_Av1AggregationHeader_serialize (SmolRTSP_Av1AggregationHeader self, uint8_t buffer[restrict])
	Serializes self into the single byte at buffer (network order).
size_t	smolrtsp_av1_leb128_encode (uint64_t value, uint8_t buffer[restrict]) SMOLRTSP_PRIV_MUST_USE
	Encodes value as a LEB128 unsigned varint into buffer.
size_t	smolrtsp_av1_leb128_decode (const uint8_t *buffer, size_t buffer_len, uint64_t *value) SMOLRTSP_PRIV_MUST_USE
	Decodes one LEB128 unsigned varint from buffer.
size_t	smolrtsp_av1_leb128_size (uint64_t value) SMOLRTSP_PRIV_MUST_USE
	Returns the number of bytes that smolrtsp_av1_leb128_encode would write for value.

Detailed Description

AV1 RTP aggregation-header types, LEB128 helpers, and OBU constants.

See also

AOMedia AV1 RTP Specification: https://aomediacodec.github.io/av1-rtp-spec/

Macro Definition Documentation

SMOLRTSP_AV1_AGGREGATION_HEADER_SIZE

#define SMOLRTSP_AV1_AGGREGATION_HEADER_SIZE   1

The size in bytes of the AV1 RTP aggregation header (AOMedia AV1 RTP §4.4).

Each RTP packet's payload begins with this single byte before any OBU elements.

Function Documentation

smolrtsp_av1_leb128_decode()

size_t smolrtsp_av1_leb128_decode	(	const uint8_t *	buffer,
		size_t	buffer_len,
		uint64_t *	value
	)

Decodes one LEB128 unsigned varint from buffer.

Parameters

[in]	buffer	Input buffer.
[in]	buffer_len	Number of bytes available at buffer.
[out]	value	Decoded value (only written on success).

Returns

The number of bytes consumed (in [1, SMOLRTSP_AV1_LEB128_MAX_SIZE]), or 0 if the input was truncated or malformed.

smolrtsp_av1_leb128_encode()

size_t smolrtsp_av1_leb128_encode	(	uint64_t	value,
		uint8_t	buffer[restrict]
	)

Encodes value as a LEB128 unsigned varint into buffer.

Parameters

[in]	value	The value to encode.
[out]	buffer	Output buffer; must hold at least SMOLRTSP_AV1_LEB128_MAX_SIZE bytes.

Returns

The number of bytes written (in [1, SMOLRTSP_AV1_LEB128_MAX_SIZE]).
